Anti Condensation Heaters for Electrical Enclosures

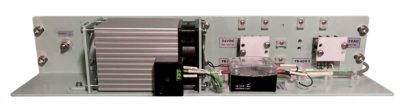

Rugged Anti-Condensation Heater

The Metromatics Rugged Anti-Condensation Heater is designed to protect delicate and expensive Military Electronic Equipment housed in Electronic Enclosures from condensation and moisture damage.

It is a 2RU 19” Rackmountable Rugged Product that is built to military shock and vibration standards; MIL-STD-901D & MIL-STD-167. With Non Hexavalent Corrosion Treatment & Powdercoating, it is available in two models; 115VAC, 60Hz or 230VAC, 50Hz.

The Removal of Condensation from the Electronic Enclosure is achieved through the 250W of thermostat controlled convection (Anti-Condensation Heater).

Category: Rugged / MIL-STD

The Anti-Condensation Heater eliminates the creation of water vapour inside the enclosure by keeping the internal temperature above the dew point. Firstly, Moisture is the formation of condensate during low temperature and/or high humidity conditions. Secondly, removal of condensation is achieved via thermostat-controlled convection. However, it may also provide protection against frost in extreme low temperature conditions.

Unless condensation is kept under control with an Anti-Condensation Heater. It can lead to mould, corrosion, damage or short circuiting of the electronics in the enclosure and worst case scenario, Fire.

Features include:

Choice of 2 models – 230VAC (50Hz) or 115VAC
Up to 250 W of Heating Capacity
2.4 Amps of Maximum Current
Operating Temperature -25° to +70°C
2RU Rackmountable
Built to MIL-STD-901D & MIL-STD-167

Finally, the Metromatics Anti Condensation Heater has been successfully installed in our 19” Light Racks & Consoles that we manufacture and supply to the Australian Defence Forces and their Primes. It is also suitable for any other Electronic Enclosures on the market.

Contact us for find out more information
