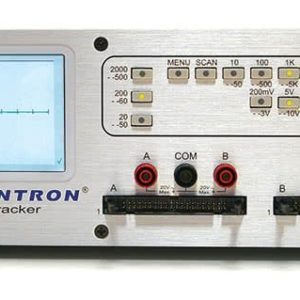

Huntron Tracker 2800 for Circuit Board Troubleshooting

Circuit Board Troubleshooting

The Huntron Tracker 2800 is designed to complement conventional test instruments in the debug and troubleshooting process of PCB Circuit Boards. Using the proven power-off test method known as Analog Signature Analysis it eliminates the risk of further circuit damage, which often occurs when power is applied.

The Huntron Tracker 2800 is suited for today’s varied signal circuit cards where Analog and Digital are mixed together. Other features include:

  • Full Screen Signature Zoom
  • Colour Touch Screen controls
  • Huntron SigAssist® built-in
  • Built-in DC Voltage Source for testing gated devices (i.e. SCRs, relays, etc.)

Complete the form below to request a quote

Or call us on +61 7 3868-4255

  • This field is for validation purposes and should be left unchanged.

Here’s how to receive a quote for this product

  1. Complete the quote form and submit

  2. A friendly expert will contact you shortly after to discuss your personal needs

  3. We will provide you a simple but comprehensive quote on what it will take to build your Custom Design

It only takes a minute to complete the first step. Start now!

Categories: , , Tags: , , , ,
Circuit Board Troubleshooting with the Huntron Tracker 2800

The Tracker 2000 for the 21st Century.

The Huntron Tracker 2800 is the ideal tool for circuit board troubleshooting. Firstly, it features variable range parameters resulting in over 100 combinations of voltage, source resistance and frequency. The 2800 is a great off-line support tool for the automated Huntron Access Prober diagnostic systems.

The Tracker works by applying a current-limited AC signal across two points of a component. The current flow causes a vertical signature deflection, while the applied voltage causes a horizontal deflection. Together they form a unique V/I signature that represents the overall health of the device under test. Analysing the signature can quickly determine whether the component is good, bad, or marginal.

Features of the Tracker 2800
  • Optional Software Control using Huntron Workstation
  • Enhanced Range Selections
  • Full Screen Signature Zoom
  • Colour Touch Screen controls
  • Huntron SigAssist® built-in
  • Built-in DC Voltage Source for testing gated devices (i.e. SCRs, relays, etc.)



The difference between the Tracker 2800 & Tracker 2800S

The 2800S has the front Cable Interface such as DIP Clips and cables to attach to your components. Where as the Tracker 2800 does not. All other specifications are the same.



Technical Specification
Part Numbers99-0401; 99-0422 with Workstation software
Number of Voltages plus values6 voltages: 200mV, 3V, 5V, 10V, 15V, 20V
Number of Resistances plus values9 resistances: 10Ω, 50Ω, 100Ω, 500Ω, 1kΩ, 5kΩ, 10kΩ, 50kΩ and 100kΩ
Number of Frequencies plus values6 frequencies: 20Hz, 50Hz, 60Hz, 200Hz, 500Hz and 2kHz
Range SelectionManual or use Auto Scan; Optional Software control
Front Panel ConnectionsBanana jacks for A/B Test channels and Common;
DC Voltage Source for testing gated devicesVariable voltage from 0 to 10VDC; 200mA max.

For further information, please contact us.
