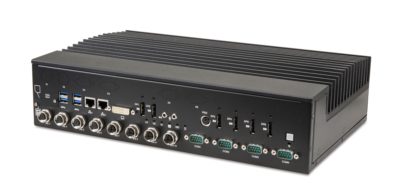

Embedded PC & GPU Platform for real time video analysis

The AVA-5500 Series is an Artificial Intelligence (AI) enabled Video Analytics Platform.  It consists of powerful NVIDIA® GPU, Intel® Core Processor, Multiple Digital Inputs & Outputs, and Storage Options and encased in a Rugged, Fan less Aluminium enclosure that is EN50155 certified.

It is the ideal edge solution for a range of industries including Rail, Mining, Defence, Power and Industrial Automation which require real time video/graphics analysis for today’s complex business operations.

The ADLINK AVA-5500 Series is an embedded PC and GPU Platform for real time video analysis.  Components of this advanced AIoT solution include:

  • 6th/7th Gen Intel® Core ™ i7 Processors
  • NVIDIA Quadro® GPU MXM 3.1 Type A/B Module on PCI Express x 16
  • 8 x M12 GbE (4 x PoE), 4 x RS-422, 4 x USB 3.0, 1 x DVI-1, 4 x DisplayPort with lockable connectors
  • Multiple storage options: 2 x 2.5” SATA 6.0 Gb/s drive bays, 1 x M.2 2280 slot, 1 x CFast socket
  • GNSS/3G/4G/WLAN Support via 2 x Mini PCIe slots and 2 x USIM slots
  • 4 x Isolated Digital Inputs and 4 x Isolated Digital Output Modules
  • EN50155 Certified



To download spec sheet, click here

AVA-5500 Series is an AI Driven System for Railways



The AVA-5500 Series is not only just for the Railway platform / wayside and on board use on trains.  It also provides a solution for real time video / graphics analysis applications.  For example:  Passenger Information Systems, Railway Intrusion Detection, Train Station Surveillance, On board Video Security, Railroad Hazard Detection plus other railway applications.

In one particular application, the AVA-5500 Series is installed on special inspection trains to capture and process images of critical wayside equipment in real time.  Due to its sophisticated algorithm created by parallel computing and deep learning, it is able to identify potential equipment faults when the train is travelling at speeds of up to 120 km per hour.  It then raises the alarm to notify maintenance crews.

Another application, the AVA-5500 is used in the train station control room to analyse the real time video stream received from the platform.  It is able to detect suspicious behaviours and trigger alerts.  As well as conduct post event analysis.

The AVA-5500 is available in two variations:

  1. Additional two USB 2.0 via M12 Connectors and two 2.5” SATA 6Gb/s Drive Pays
  2. +12 VDC Power Input only



With AI Driven systems like the ADLINK AVA-5500, railways and other industries are becoming safer, smarter and more reliable.  They enhance passenger travel experience and freight logistic services.  However, these AI-Driven applications only function with proper data input.  Collected by the IoT devices.  Installed in stations, on trains and along the tracks.  ADLINK provide more than 20 years expertise in developing reliable embedded computing systems, enabling their customers to deliver applications with true value and superior performance.

Metromatics offer local sales, service and support and works with ADLINK to offer Australian Companies these significant benefits.  Contact us for more information.

Watch the Video below on how the AVA-5500 Embedded PC & GPU Platform for real time video analysis – to see how it could benefit your business!
