General Purpose IEPE Impact Hammers – Precise Structural Testing Tools
Metromatics supplies a high-quality range of General Purpose IEPE Impulse Hammers (also known as Impact Hammers). Ideal for modal analysis, structural testing, and dynamic response measurements. These hammers deliver accurate force input signals into a structure, enabling engineers to measure frequency response functions (FRFs) and characterise vibrational behaviour.
You can find a lightweight hammer for delicate parts or a strong one for big machines and heavy structures in our range.
🔧 Available Models at a Glance
We offer several models with varying impact force, sensitivity, and head weights to suit different testing applications:
General Purpose MMIH-10
Force Range: ±2,250 lbf (±10,000 N)
Sensitivity: 2.2 mV/lbf (0.5 mV/N)
Tip Selection: Hard, Medium, Soft
Hammer Head Weight: 500 g
Applications: Pumps, compressors, medium-to-heavy structures
Learn more →
High Force MMIH-20
Force Range: ±11,250 lbf (±50,000 N)
Sensitivity: 1.1 mV/lbf (0.25 mV/N)
Hammer Head Weight: 1,000 g
Ideal for: Large weldments, propellers, foundations
View specifications →

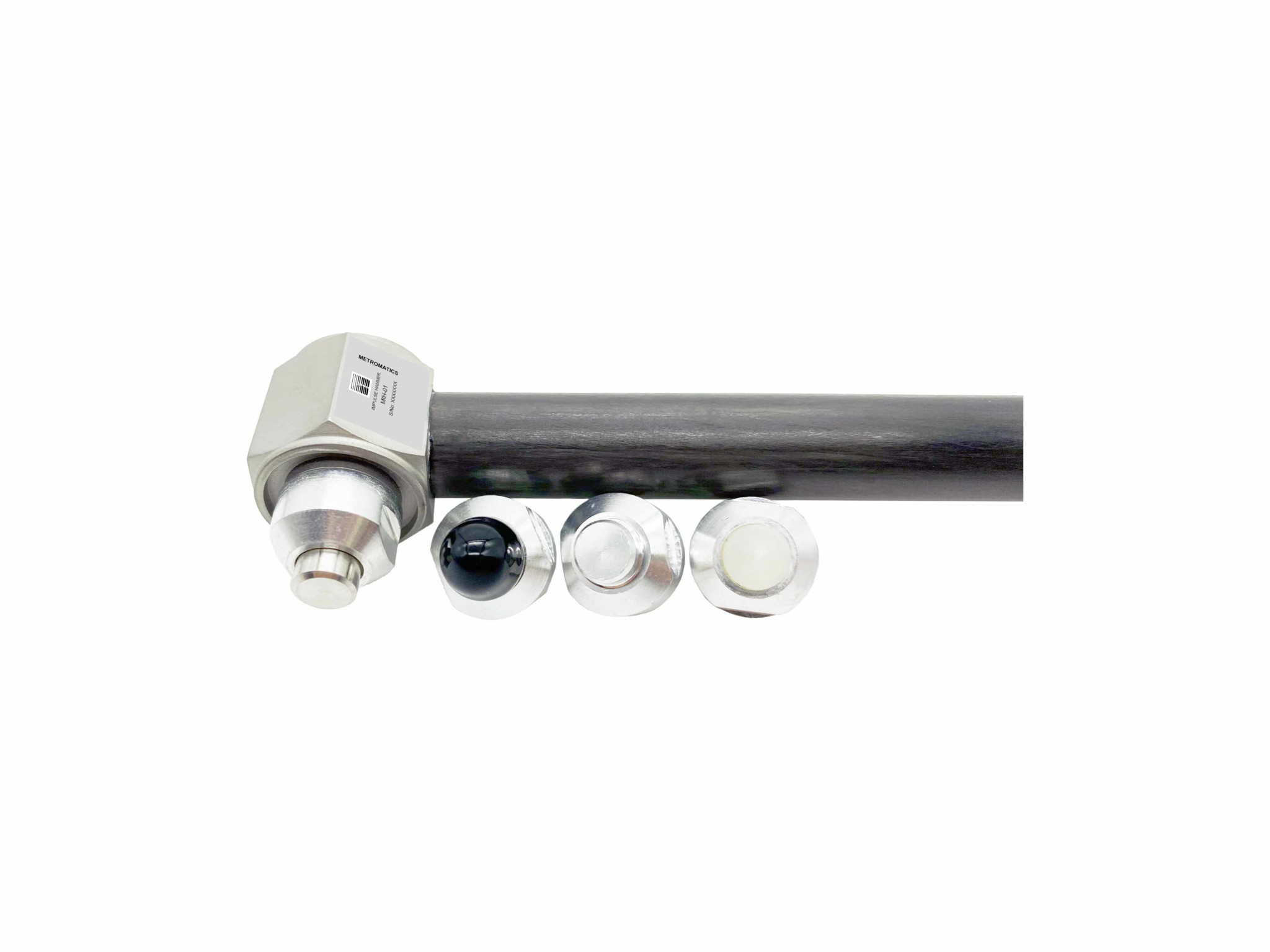

Lightweight Impact Hammer – Precision Testing
Force Range: ±45 lbf (±200 N)
Sensitivity: 111 mV/lbf (25 mV/N)
Hammer Head Weight: 28 g
Optimised for: Circuit boards, light panels, and small mechanical parts
Discover more →
📊 Comparison Table – IEPE Hammers
(PE models excluded)
| Model | Sensitivity (mV/lbf) | Force Range (lbf) | Resonant Frequency (kHz) | Head Weight (g) | Application |
|---|---|---|---|---|---|
| MMIH-10 | 2.2 | ±2,250 | ≥45 | 500 | Medium-to-heavy |
| MMIH-20 | 1.1 | ±11,250 | ≥45 | 1,000 | Heavy structures |
| Lightweight MMIH-01 | 111 | ±45 | ≥60 | 28 | Lightweight structures |
All models include: calibration certificate, coaxial cable (2m), multiple hammer tips, and optional extender mass.
🧪 Why Choose IEPE Impact Hammers from Metromatics?
- ✅ Precision quartz sensing elements
- ✅ IEPE output compatibility with standard data acquisition systems
- ✅ Multiple interchangeable tips for tailored frequency response
- ✅ Supplied with all essential accessories
- ✅ Expert local technical support in Australia and New Zealand
📞 Need Help Choosing the Right Impact Hammer?
Our team of engineers can help you choose the right General Purpose IEPE Impulse Hammer for your testing needs. Whether you’re performing modal testing on automotive parts, structural frames, or large machinery—we’re here to help.
👉 Call us on Brisbane +61 7 3868 4255 I Melbourne +61 3 9872 4592 I Sydney +61 2 9460 4355
📧 Email us at sales@metromatics.com.au
📍 Or Check out this brochure today!
