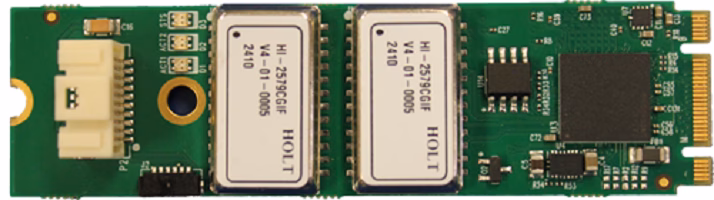

The Alta Data M.2 1553 Interface Card (MP2-1553) delivers full-featured 1–2 channel MIL-STD-1553 avionics connectivity in an ultra-compact M.2 2280 form factor. Firstly, it is designed for next-generation embedded mission computers, UAVs, ground vehicles, and flight control systems. This card provides the performance of a traditional 1553 interface board without the size, weight, and power penalty of legacy platforms.
In addition, it is Leveraging PCI Express® connectivity, Meaning the MP2-1553 brings dual-redundant MIL-STD-1553 bus capability to space-constrained systems. Therefore, maintaining high reliability and protocol compliance. It includes Alta’s proven AltaAPI™ SDK with broad OS support for rapid integration. Plus advanced features such as system clock synchronisation and IRIG-B decode for precise timing and test applications. Available in commercial and extended-temperature variants, the MP2-1553 is built for deployment in harsh aerospace and defence environments.
Finally, Metromatics provides local sales, engineering support and after-sales service for Alta Data’s full MIL-STD-1553 and ARINC product line across Australia and New Zealand. Therefore, ensuring integration assistance, shorter turnaround times and backed local expertise.
Key Features
1–2 channel dual-redundant MIL-STD-1553 interface in M.2 2280 footprint
PCIe host interface for embedded and small-form-factor computers
Includes AltaAPI™ SDK with multi-OS support
Supports BC/RT/Monitor modes, signal capture and 1553 protocol compliance
System clock sync & IRIG-B decode for timing-critical systems
Commercial & extended-temperature models for rugged deployments
Backed locally by Metromatics in Australia & New Zealand
Applications
Flight control computers, mission processors and avionics test benches
UAV / UAS platforms and autonomous airborne payloads
Mobile ground vehicle vetronics and C4ISR nodes
Space-constrained embedded defence systems and pod-mounted electronics
Hardware-in-the-loop (HIL/SIL) simulation and 1553 data recording
Retrofit and upgrade programs requiring MIL-STD-1553 in a compact SFF host
Benefits
Integrates 1553 where larger cards will not fit — ideal for SWaP-constrained platforms
Reduces development time with ready-to-use AltaAPI™ SDK and wide OS support
Minimises ancillary components with built-in IRIG-B decoding & timing sync
Future-proof COTS design using standard M.2 module format and PCIe interface
Defence-grade reliability with commercial and extended-temperature versions
Local technical support from Metromatics for faster deployment and lifecycle assurance
Technical Specifications (Summary)
Form Factor: M.2 2280 (22 × 80 mm)
Bus Interface: PCI Express®
Channels: 1–2 dual-redundant MIL-STD-1553 (A/B)
Operating Modes: BC / Multi-RT / Monitor / Signal Capture
Timing Features: System clock synchronisation, IRIG-B decode
Software: AltaAPI™ SDK with multi-OS support (Windows / Linux / RTOS variants)
Environment: Commercial and extended-temperature options available
Power Consumption: ~5 W (3.3 V)
(Access the full datasheet of MP2-1553.)
The MP2-1553 brings full MIL-STD-1553 connectivity to platforms previously too small for conventional interface cards. Therefore, making it ideal for next-generation Defence, aerospace and embedded mission systems in Australia and New Zealand.
Contact Metromatics today for pricing, integration guidance or a conversation with our local engineering team.
