VITA 93 Analog Input Module QMC350

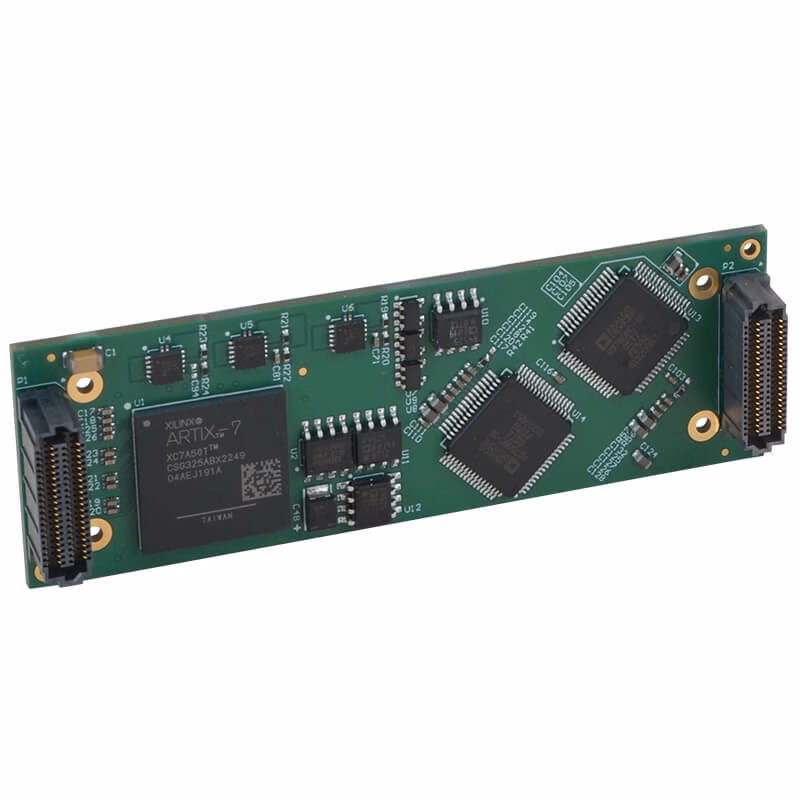

Experience high-performance data acquisition in a compact form with the Acromag QMC350. This VITA 93 Analog Input Module offers 20 channels of simultaneous 16-bit sampling at 1MSPS.

Making it ideal for rugged embedded applications where speed, accuracy, and reliability matter most.

The Acromag QMC350 is a VITA 93 analog input mezzanine module.  Designed for demanding data acquisition applications requiring high accuracy, speed, and density. With 20 analog input channels and each equipped with its own simultaneous 16-bit A/D converter.  Capable of 1 million samples per second (1MSPS).  The QMC350 is ideal for real-time monitoring and high-speed signal processing tasks.

Built on the VITA 93 small form factor (SFF) standard.  The QMC350 offers a compact, rugged solution perfect for SWaP-C constrained environments.  Such as in defence, aerospace, industrial, and laboratory systems. The module interfaces via PCIe through a carrier card.  In addition, it supports deployment across various platforms including VPX, CompactPCI, PCIe expansion cards, and VNX+ systems.

Users can set each channel independently with software-selectable input ranges. They can choose between unipolar or bipolar, single-ended or differential input. There are 12 voltage range options available. Two selectable bandwidths (25kHz or 220kHz), ±21V input clamp protection, and 1MΩ input impedance further enhance flexibility and protection. Onboard software calibration of gain, offset, and phase ensures precise, repeatable measurements.

The QMC350 has support for the Intelligent Platform Management Interface (IPMI). This lets the host system read sensor data and module information. It does this over I²C using the onboard EEPROM. This feature helps with better system diagnostics and configuration.


Key Features VITA 93 Analog Input Module:

  • 20 analog input channels with individual 16-bit ADCs

  • Simultaneous sampling at 1MSPS per channel

  • Software-selectable voltage ranges for each channel

    • Single-ended: 0–5V, 0–10V, 0–12.5V, ±2.5V, ±5V, ±6.25V, ±10V, ±12.5V

    • Differential: ±5V, ±10V, ±12.5V, ±20V

  • Two bandwidth options: 25kHz and 220kHz

  • ±21V input clamp and 1MΩ impedance on all channels

  • Failsafe reset and conduction-cooled system support

  • Compact 26 x 78.25mm form factor for high-density integration

  • IPMI support via onboard EEPROM

  • Rugged design for harsh environments


Applications:

  • Real-time analog signal acquisition

  • Defence and aerospace embedded systems

  • Test and measurement platforms

  • Industrial process control

  • Compact, high-density data logging systems
