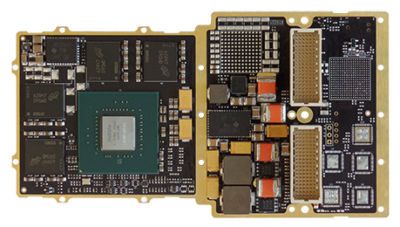

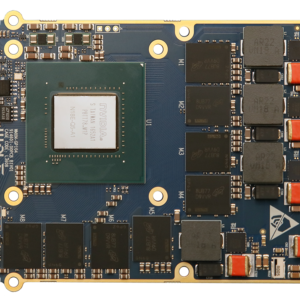

WOLF’s XMC Graphics Boards provide system designers with multiple video inputs and outputs and superior graphics support. Firstly, WOLF’s MXM Video Cards manufactured to IPC-6012 Class 3 and IPC-A-610 Class 3 Standards. Also they have extended operating temperature range and exceed MIL-STD-810 Shock and Vibration specifications.
Secondly, they use NVIDIA, AMD and/or WOLF Frame Grabber Extreme (FGX) GPU embedded systems in their design. This provides an extremely rugged, reliable XMC module, making it an ideal choice for Defence and Aerospace applications.
Also, a large majority of the WOLF XMC Graphics Boards use GPU Technology that provides support for High Dynamic Range (HDR) Video and resolutions of 4K at 120Hz or 5K at 60Hz with 10-bit colour depth.
Video cards with high processing speed and high bandwidth provide the necessary data processing for advanced applications such as parallel processing, video stabilisation, image processing, terrain analysis, object tracking and 3D visualisation of Geospatial data.
MCOTS, Customised, Air Cooled and Conduction Cooled versions available from WOLF.
For more information on this product range, contact us.
XMC GRAPHICS BOARDS
| Product | WOLF No | GPU | Cuda Cores | Memory | Video Input | Video Output | Connectivity | PCIe Gen. |
|---|---|---|---|---|---|---|---|---|
| XMC-FGX-SDI-4IO | 3080 | - | - | - | Up to 4x SDI, Up to 4x analog (CVBS or 2 x CVBS + 2x STANAG) | 4 SDI 2 ANALOG | PCIe Gen 2 x 4 | Gen 2 |
| XMC-FGX-SDI-IO | 3081 | - | - | - | Up to 2 x SDI, up to 3x CVBS, up to 2x RGB/STANAG | Up to 2 x SDI, 1 x CVBS, Up to 2 x RGB/STANAG | PCIe Gen 2 x 4 | Gen 2 |
| XMC-TK1-FGX | 30TP | NVIDIA Tegra K1 | 192 | 4GB | 2 x HD-SDI or 1 x 3G-SDI, 2 x CVBS | 2 x HD-SDI, 1 x HDMI | PCIe x 4, Ethernet (GigE) | Gen 2 |
| XMC-FGX2-SDI-4IO | 3180 | - | - | - | 2 x 12G-SDI, up to 2 x DP (HD 1080p), up to 3 Analog, 2 x CoaXpress (Up to CXP-6) | Up to 4 x 12G-SDI, 1 x VGA (Via FGX2) | PCIe Gen 3 x 8 | Gen 3 |
| XMC-FGX2-8IO | 3183 | - | - | - | Up to 8 x 12G/ 3G-SDI and /or ARINC 818, CVBS NTSC/PAL, HDMI/DVI (Optional) | Up to 8x 12G, 3G-SDI and or ARINC 818 (configurable) | PCIe Gen 3 x 8 | Gen 3 |
| XMC-FGX2-VIO-DO254 | 3184-DAL-C | - | - | - | Up to 4x HD, 3G-SDI In, 2 x DP Inputs, (HBR2/MST) 1 x RGsB Input | Up to 4xHD/3G-SDI out, direct DP-to-SDI Conversion | PCIe Gen 3 x 4 | Gen 3 |
| XMC-FGX2-6IO | 3185 | - | - | - | Up to 4 x SDI, up to 2xDP (MST), ARINC 818 (optional), CoaXpress (optional), CVBS/RGsB (optional) | Up to 4xSDI, DP-to-SDI conversion in FGX2 (optional) | PCIe Gen 3 x 4 | Gen 3 |
| XMC-A2000E-VO | 3476 | NVIDIA A2000E | 2560 | 8GB | - | Up to 4x DisplayPort, 1.4/HDMI/DVI (Configurable) 1 x VGA (Optional) | PCIe Gen 4 x 8 | Gen 4 |
| XMC-AD2000E-FGX2-IO | 3570 | NVIDIA Ada RTX2000 | 3072 | 8GB | 4 SDI, 2 CVBS | Up to 2 x DP/HDMI/DVI up to 2xSDI (or up to 4 x FGX2) | PCIe Gen 3 x 8 | Gen 3 |
| XMC-AD2000E-VO | 3576 | NVIDIA RTX (GA107) Ada | 3072 | 8GB | - | Up to 3 x DP ++ 1.4 | PCIe Gen 4 x 8 | Gen 4 |
| XMC-BW500E-VO | 3696 | NVIDIA RTX 500 Blackwell (GB203) | 1792 | 6GB | - | Up to 3 x DP ++ 2.1b | PCIe Gen 4 x 8 (Gen 5 Capable) | Gen 4 |
About WOLF
WOLF Advanced Technology designs and manufactures rugged VPX, XMC, and MXM/MXC modules for video capture, process, display, and AI inference. Solutions operate in harsh aerospace and defence environments. Without sacrificing any of the high-speed processing available from advanced NVIDIA, AMD and Xilinx GPUs, APUs and FPGAs. Modules range from extremely low power modules to industry-leading high-performance modules which meet embedded systems size, weight and power (SWaP) requirements. Products include rapidly available COTS solutions, feature-tailored MCOTS solutions, and full custom designs. Finally, WOLF products are designed to pass rigorous environmental testing and manufactured to meet the highest reliability standards.
