XMC Products

The Acromag XMC Product range consists of XMC Carrier Cards, XMC FPGA, XMC Networking Boards, Multi Function I/O, I/O Extension Boards, Accessories and Software.

Used in Defence, Aerospace and Scientific Applications such as: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing.  Conduction Cooled versions for more rugged applications are also available.

Metromatics provide sales, service and local support in Australia and New Zealand for the Acromag XMC Product Range.

Category:

XMC Products (also known as switched mezzanine card) is defined by the VITA 42.0 Specification.  It is a natural extension of PCI by using the P15 connector allowing it to support PCI Express (PCIe).  Plus develop other high speed serial formats such as Serial RapidIO® (SRIO) and parallel RapidIO.

The XMC Board is the same size as the PMC Version.  The XMC Product uses the PCIe bus that is native on many CPU Boards.  This eliminates the need for PCI to PCI Bridge Chip.  Also, designers are able to achieve a higher bandwidth by using XMC due to the number of serial lines available (x1, x4, x8 or x16).

PCIe is the most common variant.  However, some Defence Companies prefers the Serial RapidIO® (SRIO) bus version instead. Typically, SRIO is used to connect networks of peer to peer embedded processors due to high bandwidth, low latency applications.  It allows for functional partitioning of field replaceable units or hot swap applications.

Those industries such as Defence, Aerospace and Science, which depend on accurate and reliable input of data, continue to invest in XMC.  This is because a wide variety of XMC Modules, Carrier Cards, FPGA and I/O is continuously being released into the market.  It continues to deliver a high performance product, durable in harsh conditions and extended temperatures and provide large savings for the customer.

Acromag offer a full range of XMC FPGA, Carrier Cards, Networking, Multi Function I/O, I/O Extension Modules, Accessories and Software.

For more information, contact us.

XMC Products Range

XMC Carrier Card XMC FPGA Card XMC I/O Extension
Carrier Card XMC XMC FPGA  I/O Extension XMC
XMC Multifunction I/O Card Networking XMC Accessories for XMC Products
Multifunction I/O XMC XMC Networking Accessories for XMC
Linux Software for XMC Products

Software Support for XMC

Carrier Card XMC

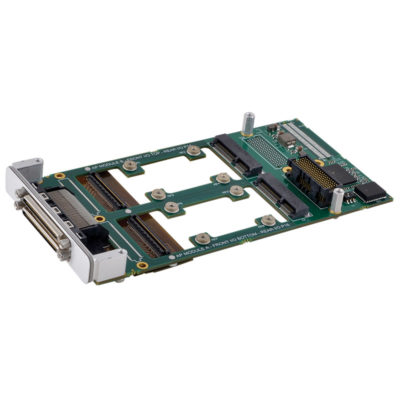

XMC Carrier Card XMC Carrier Card

XMCAP2000

Air Cooled XMC Carrier.  Interfaces two AcroPack mezzanine modules to PCI Express Bus. Optional Front I/O, Rear I/O,  or use with ARCX-4000 Rugged Computer

For Systems that require reliable, accurate data input: Defence, Scientific, Aerospace Applications

Brochure

FPGA XMC

XMC FPGA Card

USER CONFIGURABLE, CONDUCTION COOLED, ARTIX-7 FPGA MODULES

XMC-7A200CC

XMC Module with PCIe Interface.  Logic Optimised Xilinx Artix-7 FPGA with high speed memory and high throughput serial bus interface.

Typical Uses: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing

Brochure
XMC Module with PCIe Interface

USER CONFIGURABLE,  ARTIX-7 FPGA MODULES WITH PLUG IN I/O

XMC-7A200

XMC Module with PCIe Interface. Reconfigurable Xilinx Artix-7 FPGA with 200K Logic Cells. Powerful and flexible I/O Processer module capable of executing custom instruction sets and algorithms.

Typical Uses: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing

Brochure
XMC Module

USER CONFIGURABLE, XILINX KINTEX-7 FPGA MODULES WITH PLUG IN I/O

XMC-7K AX

XMC Module with PCIe Interface. Reconfigurable Xilinx Kintex-7 FPGA with 325 or 410K Logic Cells. Powerful and flexible I/O Processer module capable of executing custom instruction sets and algorithms.

Typical Uses: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing

Brochure
Kintex XMC Module





USER CONFIGURABLE, CONDUCTION COOLED, XILINX KINTEX-7 FPGA MODULES

XMC-7K CC

XMC Module with PCIe Interface. Reconfigurable Xilinx Kintex-7 FPGA with 325 or 410K Logic Cells. Powerful and flexible I/O Processer module capable of executing custom instruction sets and algorithms.

Typical Uses: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing

Brochure
FPGA Kintex Module I/O

USER CONFIGURABLE, XILINX KINTEX-7 FPGA MODULES WITH DUAL SFP + PORTS

XMC-7K F

XMC Module with PCIe and SFP+/Aurora Interface. Reconfigurable Xilinx Kintex-7 FPGA with 325 or 410K Logic Cells. Dual SFP Ports for Fibre Channel or 10GbE.

Typical Uses: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing

Brochure
Spartan FPGA Card

USER CONFIGURABLE, XILINX SPARTAN-6 FPGA MODULES WITH PLUG IN I/O

XMC-SLX

XMC Module with PCIe Interface. Reconfigurable Xilinx Spartan-6 FPGA with 147,433 Logic Cells. I/O Extension Mezzanine Modules.

Typical Uses: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing

Brochure
VIRTEX 5 FPGA Card

USER CONFIGURABLE, XILINX VIRTEX-5 FPGA MODULES WITH PLUG IN I/O

XMC-VLX

XMC Module with PCIe Interface. Reconfigurable Xilinx Virtex-5 FPGA with 85K, 110K or 155K Logic Cells. I/O Extension Mezzanine Modules.

Typical Uses: Hardware Simulation, Communications, In-circuit diagnostics, Defence Servers, Signal Intelligence and Image Processing

Brochure

XMC I/O EXTENSION

Digital I/O Extension for PMC & XMC FPGA Boards DIGITAL I/O EXTENSION MODULES

AXM-D SERIES

Offer numerous Plug In I/O Options for Acromag’s  PMC & XMC modules with configurable FPGAs. 4 x I/O Options. JTAG Support.

Brochure
Multi Function I/O Extension Board for FPGA MULTI FUNCTION I/O EXTENSION MODULES FOR ACROMAG FPGA CARDS

AXM-A75 SERIES

A Multi Function Board which adds A/D, D/A and Digital I/O Signal Processing Functions to a Acromag FPGA Board. 16 Analog Inputs, Simultaneous A/D; 8 Analog Outputs, Simultaneous D/A; 16 Digital I/O Channels.

Brochure
