UPS Battery Packs

Metromatics supply a wide variety of UPS Battery Packs suitable for Acumentrics Rugged UPS Systems.  Available are Internal and External Lead Acid Batteries (LAB) and Lithium Iron Phosphate (LFP) Battery Packs – 1U, 2U, 3U and 4U sizes.

These batteries have a long life expectancy, meet numerous MIL-STDs and have been tested and certified out in the field to become rugged, reliable power sources.

Metromatics provide excellent sales, service and support for our customers in Australia and New Zealand

Category:

UPS Battery Packs are manufactured by Acumentrics suitable for their Rugged UPS Systems.

For further information on this product range, contact us.

Please view their portfolio of LFP or Lead Acid UPS Battery Packs below:



UPS LFP Battery Packs

Lithium Iron Phosphate or LFP is a relatively new power source.  However, it has proven to be a safe, lightweight, robust energy source for Acumentrics Rugged UPS Systems.  Firstly, Crush, fire and bullet penetration testing has been performed to simulate combat situations.  The results indicate that the Acumentrics LFP Battery Packs remain intact and only suffered minimal reactions to these fierce conditions.  Therefore, the results indicate a power source with a greater life cycle and higher run times than lead acid battery packs.

Standard features of most LFP Battery Packs include:

MIL-STDs: EMI MIL-STD-461F; Environment MIL-STD-810G

Temperatures: Operating -20° to 60°C; Storage -40° to 70°C

Hot Swappable Internal LFP Battery Pack in some models

Tested and Certified to meet UN-DOT-38.3

Warranty: 1 Year

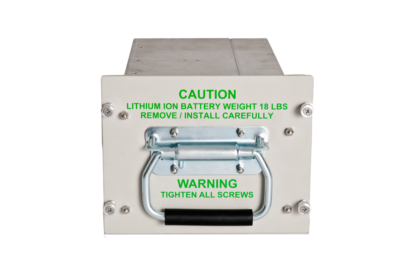

 4U LFP Battery Pack
25.6V, 532Wh
ACG2500BPLI

2U LFP Battery Pack
25.6V, 266Wh
ACG1252BPLI

3U Internal UPS Battery Pack
25.6V, 266Wh
ACB2503

UPS Battery PacksUPS IFP Battery PackInternal Ups battery pack
Height x Width x Length CM17.78 x 15.24 x 35.56 cm8.89 x 10.16 x 30.48 cm13.34 x 10.16 x 30.48 cm
Height Unit4U2U3U Internal
Battery TypeLFPLFPLFP
Backup Time10 Mins12 Mins6 Mins
Total UPS Weight8.16 Kg3.63 Kg4.08 Kg
DatasheetSpec SheetSpec SheetSpec Sheet
1U LFP Battery Pack
25.6V, 266Wh
ANG1251BPLI

4U External LFP Battery Pack
2 Batteries
ACG2500XRBPLI

1U External UPS Battery Pack
2 Batteries, 1 Out
ANG1251XRBPLI – C1

UPS Battery PackUPS Battery Pack ExternalLFP 1U Battery External
Height x Width x Length CM4.45 x 10.16 x 30.48 cm17.78 x 43.18 x 53.34 cm4.45 x 43.18 x 53.34 cm
Height Unit1U4U External1U External
Battery TypeLFPLFPLFP
Backup Time10 Mins30 Mins20 Mins
Total UPS Weight3.62 Kg17.23 Kg10.88 Kg
DatasheetSpec SheetSpec Sheet
1U External UPS Battery Pack
3 Batteries, 3 Out
ANG1251XRBPLI-C2

1U External UPS Battery Pack
3 Batteries, 1 Out
ANG1251XRBPLI-C3

LFP 1U External Battery1U IFP External Battery
Height x Width x Length CM4.45 x 43.18 x 53.34 cm4.45 x 43.18 x 53.34 cm
Height Unit1U External1U External
Battery TypeLFPLFP
Backup Time30 Mins30 Mins
Total UPS Weight14.52 Kg13.61 Kg
DatasheetSpec SheetSpec Sheet



UPS Lead Acid Battery  (LAB) Packs

Acumentrics offers user-replaceable, customisable battery packs. Firstly, with high power density, these are the batteries of choice for many UPS applications. As they are suited for hot-swap field replacements.  Also VRLA low maintenance batteries  mountable in any orientation. Designed to recharge in an Acumentrics RUPS to 90% in 4 hours, or to 100% in 8 hours

Standard features of most LAB Battery Packs include:

MIL-STDs: EMI MIL-STD-461F; Environment MIL-STD-810G

Temperatures: Operating -18° to 50°C; Storage -32° to 66°C

Operate in any orientation: Horizontal or Vertical Mounting (avoid inversion)

Low maintenance: charge every 6 months to preserve battery life

Non Spillable: Modules sealed construction prevents electrolyte leakage from terminals or casing

Low self discharge for longer life: 20° to 25° self discharge of this product is less than 3% per month which allow storage for 6 months or more without any significant charge loss.



 1U Lead Acid Battery Pack
24V, 192Wh
ACG1UBP

4U Lead Acid Battery Pack
24V, 792Wh
ACG2500BP
2U Lead Acid Battery Pack
24V, 168Wh
ACG18BP
UPS Lead Acid BatteryLead Acid UPS Batterylead acid battery ups
Height x Width x Length CM4.45 x 10.16 x 30.48 cm17.78 x 15.24 x 35.56 cm8.89 x 10.16 x 30.48 cm
Height Unit1U4U2U
Battery TypeLead Acid BatteryLead Acid BatteryLead Acid Battery
Backup Time4 Mins8 Mins4 Mins
Total UPS Weight6.35 Kg22.68 Kg6.80 Kg
DatasheetSpec SheetSpec SheetSpec Sheet
1U External Lead Acid Battery Pack
3 Batteries
ACG1UBP

1U External Lead Acid Battery Pack
4 Batteries
ACG1UBP-C3

1U External Lead Acid Battery Pack
2 Batteries
ACG1UBP-C2

UPS Lead Acid BatteryUPS Lead Acid BatteryUPS Lead Acid Battery
Height x Width x Length CM4.45 x 43.18 x 53.34 cm4.45 x 43.18 x 53.34 cm4.45 x 43.18 x 53.34 cm
Height Unit1U1U1U
Battery TypeLead Acid BatteryLead Acid BatteryLead Acid Battery
Backup Time26 Mins30 Mins18 Mins
Total UPS Weight19.05 Kg24.95 Kg14.52 Kg
DatasheetSpec SheetSpec SheetSpec Sheet
2U External Lead Acid Battery Pack
1 Battery
ACG1252XRBP

2U External Lead Acid Battery Pack
2 Batteries
ACG1252XRBP

2U External Lead Acid Battery Pack
3 Batteries
ACG1252XRBP

Lead Acid UPS Battery 1lead acid ups batterylead acid ups battery
Height x Width x Length CM8.89 x 43.18 x 53.34 cm8.89 x 43.18 x 53.34 cm4.45 x 43.18 x 53.34 cm
Height Unit2U2U2U
Battery TypeLead Acid BatteryLead Acid BatteryLead Acid Battery
Backup Time10 Mins18 Mins26 Mins
Total UPS Weight14.52 Kg20.87 Kg27.22 Kg
Datasheet
