FPGA Modules (Acromag)

Acromag’s high-performance XMC, PMC and PCIe-Based FPGA modules feature a user-customisable Xilinx and Xilinx Zynq FPGA. These modules allow you to develop and store your own instruction sets in the FPGA for a variety of adaptive computing applications. Select from several models with up to 410K logic cells optimised for logic, DSP, or PowerPC. The high-speed memory and fast bus interfaces rapidly move data. Or try a FPGA engineering design & software kit which comes with examples to simplify your programming and get you started quickly.

FPGA modules are well-suited for many applications such as signal intelligence, simulation, communication, and imaging. The PCIe interface is ideal for distributed systems in aerospace, naval, and army vehicles.



Request a quote

Categories: ,





High Performance, High Speed FPGA Modules

Acromag has a range of FPGA Modules that operate under various form factors such as: IndustryPack, PMC, XMC and PCIe.

NameUser Configurable Zync Ultrascale+ MPSOC I/O ModulesIndustry Pack Modules with Altera Cyclone-II FPGAMini PCIe Based Mezzanine I/O Module with user configurable Xilinx FPGA (Acropack FPGA)

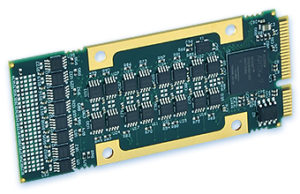

ImageAPZU FPGA Configurable Acropack I/O ModuleFPGA ModulesFPGA Modules
DescriptionAPZU series modules provide a programmable Xilinx Zynq UltraScale+ multiprocessor system on a chip (MPSoC). This MPSoC combines a feature-rich ARM-based processing system and programmable logic in a single device.
Xilinx® Zynq UltraScale+ MPSoC
ARM Cortex™ A53 & R5 CPUs
Programmable logic
PCIe Bus Interface
The Acromag IP-EP200 plug-in mezzanine modules provides a user-customszable Altera® Cyclone II FPGA on an Industry Pack (IP) module. The module allows users to develop and store their own instruction set in the FPGA for adaptive computing applications. Typical uses include specialised communication systems over RS422/485 networks, test fixture simulation of signals over TTL-switched lines, and analysis of acquired data using specialized mathematical formulas such as those developed with MathWorks’s MatLab® software.The APA7-500 series provides a FPGA based user-configurable bridge between a host processor and a custom digital interface via PCI Express. These boards feature a best in class Artix®-7 interface to deliver the industry’s lowest power and high performance. Features include • 52,160 logic cells • PCI Express bus interface • Conduction or air cooled
FPGAXilinx Zynq UltraScale+ multiprocessor system on a chip (MPSoC)Altera Cyclone IIXilinx Artix-7 FPGA
ModelsAPZU-301-QSP: Quick Start Package
APZU-301E-LF: 28 TTL Channels (1.8V)
APZU-303E0LF: 20 TTL & 3 EIA-485/422 Channels (3.3V)
APZU-304E-LF: 14 LVDS Channels
IP-EP201: 48 TTL lines
IP-EP202: 24 differential RS485 lines
IP-EP203: 24 TTL lines and 12 RS485
IP-EP204: 24 LVDS lines
All models: LVTTL external clock input
422 channelsAPA7-504E-LF_ 24 LVDS channels
LinkAPZU User Configurable Zynchttps://www.acromag.com/catalog/1451/embedded-io-processors/acropack-mini-pcie-based-io-modules/reconfigurable-fpga/apa7
NameXMC Modules enhanced with Xilinx Artix-7 FPGAXMC Modules enhanced with Xilinx Kintex-7 FPGAI/O Extension Modules for FPGA
ImageFPGA Modules
DescriptionThese XMC Artix-7 FPGA feature 200K logic cells and DDR3 memory for increased DSP algorithm performance. Lower level applications will benefit from the Artix®-7 FPGA with either plug-in I/O or conduction cooled versions available for a lower cost solution. These FPGA modules feature a standard protocol running on a well-defined medium such as Gigabit or XAUI Ethernet, Serial RapidI/O, or Aurora which allows IP cores to be developed that can be easily supported for the long term.These XMC Kintex-7 FPGA with 325K or 410k logic cells and feature DDR3 memory for increased DSP algorithm performance. These boards excel with applications that require both high-bandwidth processing in combination with high-speed serial interfaces. These FPGA modules feature a standard protocol running on a well-defined medium such as Gigabit or XAUI Ethernet, Serial RapidI/O, or Aurora which allows IP cores to be developed that can be easily supported for the long term.AXM Series extension modules offer analogue and digital I/O options for Acromag PMC or XMC FPGA modules. These extension modules plug into the front mezzanine on the FPGA modules.
FPGAXilinx Artix-7 FPGAXilinx Kintex-7 FPGAN/A
ModelsXMC-7A200 & XMC-7A200 CC Conduction Cooled Version• XMC-7K AX: User-Configurable Kintex-7 FPGA Modules with Plug-In I/O
• XMC-7K CC: User-Configurable Conduction-Cooled Kintex-7 FPGA Modules;
• XMC-7K F: User-Configurable Kintex-7 FPGA Modules with Dual SFP+ Ports
• AXM-A30: Analog Input Extension I/O Module for PMC FPGA.
• AXM-A75: Multi-function I/O for PMC & XMC FPGA
• AXM-D Series: Digital I/O Extension Modules for PMC & XMC FPGA.
Linkhttps://www.acromag.com/catalog/1105/embedded-io-processors/xmc-products/xmc-fpga-boardshttps://www.acromag.com/catalog/1105/embedded-io-processors/xmc-products/xmc-fpga-boardshttps://www.acromag.com/catalog/168/embedded-io-processors/xmc-products/io-extension-modules-fpga-boards
NameVPX Boards with Xilinx Spartan-6 SLX FPGAPMC Modules with Xilinx Spartan-6 SLX FPGAPMC Modules with Xilinx Virtex-5 FPGA

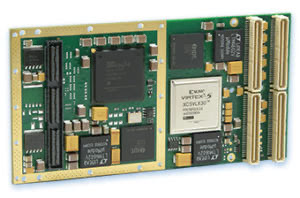

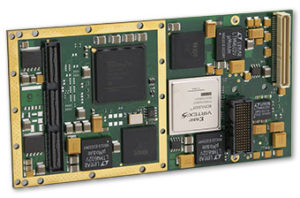

ImageFPGA ModulesFPGA ModulesFPGA Modules
DescriptionSpartan 6 XMC FPGA modules are cost-effective modules offer FPGAs with up to 150K logic cells optimized for logic processing. Dual-ported SRAM and a PCI Express (PCIe) interface move data efficiently.These FPGA modules are ideal for cost-senstive applications. The Spartan-6 FPGA provides plenty of computing plus a PCI-X interface and dual-port SRAM for fast data transfers. Extended temperature version are available.These modules offer FPGAs with up to 155K logic cells optimised for logic processing. DDR2 SDRAM and a PCI Express (PCIe) interface rapidly move data
FPGAXilinx Spartan 6 FPGA Xilinx Spartan 6 FPGAXilinx Virtex 5 FPGA
ModelsXMC-SLXPMC-SLX• PMC-VFX: Reconfigurable Virtex-5 FPGA with plug-in I/O; 71K logic cells and PowerPC
• PMC-VLX: Reconfigurable Virtex-5 FPGA with plug-in I/O ; up to 155K logic cells
• PMC-VSX: Reconfigurable Virtex-5 FPGA with plug-in I/O; with 94K logic cells
Linkhttps://www.acromag.com/catalog/1105/embedded-io-processors/xmc-products/xmc-fpga-boardshttps://www.acromag.com/catalog/802/embedded-io-processors/pmc-products/pmc-fpga-boardshttps://www.acromag.com/catalog/802/embedded-io-processors/pmc-products/pmc-fpga-boards
NameIndustry Pack Software SupportXMC, PMC, PCI, cPCI Software SupportFPGA Accessories

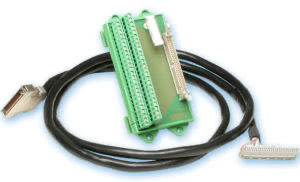

DescriptionIndustry Pack Software Support For faster and easier development, Acromag provides a variety of function libraries for Windows, Linux, VxWorks, and other operating systemsXMC, PMC, PCI, PCIe, and ConpactPCI Software Support For faster and easier development, Acromag provides a variety of function libraries for Windows, Linux, VxWorks Accessories Termination Products Acromag provides a broad selection of hardware accessories to simplify the use of their I/O boards. This collection of panels, cables, and adaptors
ModelsIPSW-APIPCISW-API-LNX
PMCSW-API-VXW
PCISW-API-WIN
Cables
Termination Panels
Transition Modules
Linkhttps://www.acromag.com/catalog/670/embedded-io-processors/industry-pack-io-products/software-support/ipsw-series/ipswhttps://www.acromag.com/catalog/93/embedded-io-processors/pmc-products/software-supporthttps://www.acromag.com/catalog/94/embedded-io-processors/pmc-products/accessories



For further information, contact us.
