Millivolt signal converters

Metromatics has a range of Millivolt Signal Converters available.  Please see our selection below.

For more information, contact us.

Thermocouple / millivolt input 2 wire dual channel transmitter Model:  DT233	Thermocouple / millivolt Signal Convert with 4 Wire Dual Channel Transmitter Model: DT333	Millivolt / Thermocouple Two Wire Transmitter Model: TT233
Current / Millivolt Signal Converter with 2 Wires Model: TT236	Thermocouple / millivolt 4 wire transmitter Model: TT336	Single or dual channel Thermocouple / millivolt with loop powered transmitter Model:  655T, 656T
Universal Temperature Transmitter Model: 801T	Millivolt / Thermocouple Head Mount Transmitter Model:  ST132	Isolated Transmitter with Thermocouple / MilliVolt Input Model: ST133
MilliVolt Field Input Module Model: uB30; uB40	DC or AC Power Transmitter with Loop Model: 250T-mV; 350T-mV; 450T-mV

Features of Acromag Millivolt Signal Converters

DT233:  Dual Channel 2 Wire transmitter.  Isolates and converts millivolt or thermocouple sensor inputs to proportional 4-20mA control signals.  Power received from output loop current.

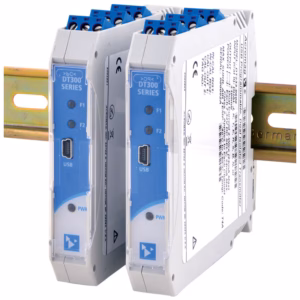

DT333:  Dual Channel 4 wire signal converter.  Isolates and converts millivolt or thermocouple sensor inputs to proportional 4-20mA control signals.  Each channel supports DC current or voltage output.

TT233: Two wire transmitter that isolates and converts millivolt or thermocouple sensor inputs (TC type J, K, T, R, S, E, B, N or +-/100mV to a proportional 4-20mA control signal.  Power received from output loop current or a DC supply when using a 3 wire connection.

TT236: Two wire transmitter that converts and isolates DC Current or Low Voltage Input to a proportional 4-20mA control signal. Single unit supports both voltage and supply when using three wire connection.

TT333:  Four Wire Transmitter that isolates and converts a millivolt or thermocouple sensor input to a proportional signal.  DC Current and Voltage Output are both supported on a single model.

TT336:  DC current and voltage output are supported on a single model.  Option to add DIN rail bus to deliver primary or redundant power to multiple units without wiring.   Multi Range +/-20mA or +/-500mV Input.

655T/656T:  Single or Dual Channel Models; Inputs consist of Thermocouple types J, K, T, R, S, E, B, N, +/-1V DC; 4-20mA DC Output; 12-50V DC from output loop power; DIP Switch Configuration and push button calibration.

801T: 0 to 20mA DC, 0 to 10V DC Output; Mechanical relay alarm, software configured; performs linearization, square root extraction and optional limit alarm functions.

ST132: 8 Types of Universal thermocouple or +/-100mV Input; 4-20mA Output, power received from output loop current.

ST133: Two wire transmitter that isolates and converts a millitvolt of thermocouple sensor input to a proportional 4-20mA control signal.  Power received from output loop current.  USB Configured

uB30, uB40: Millivolt field input module that is Bluetooth wireless configuration option,  Plus narrow or wide band mV field input and voltage host output.

250T-mV; 350T-mV; 450T-mV: DC millivolt Input and DC Voltage or DC Current Output
