DC Voltage or Current Input Signal Converter

Our Portfolio of Acromag DC Voltage or Current Input Signal Converters

For more information, contact us.

Current or millivolt Input Two Wire Transmitter Model:  TT236	Millivolt or Current Input, DC Power Converter Model: TT336	Current or millivolt Input Two Wire Dual Converter Model : DT236
Current or Voltage Input Four Wire Transmitter Model: DT336	Single or Dual Channel, DC Voltage / Current Input, DC Powered Transmitters Model: 611T or 612T	DC Voltage / Current Input Intelligent Transmitter Model: 811T
Loop, DC or AC Power Transmitter Model: 250T-AC; 350T-AC; 450T-AC	Universal Transmitter with Alarm and Display Series: VPM3000	Medium DC Voltage Input, 2 Wire Dual Transmitter Model: DT237

High DC Voltage Input, 2 Wire Dual Transmitter Model: DT238	Multi Channel, 2 Wire Signal Converters Model: 651T or 652T	Dual DC Voltage Input, Loop Powered Transmitter Model: 654T
Medium DC Voltage Input, 4 Wire Dual Transmitter Model: DT337	High DC Voltage Input, 4 Wire Dual Channel Transmitter Model: DT338	Voltage Input, Loop Power, 2 Wire Transmitter Model: TT237
High Voltage Input, Loop Powered, 2 Wire Transmitter Model: TT238	Voltage Input, DC Power Transmitter Model: TT337	High Voltage Input, DC Power Transmitter Model: TT338

Features of DC Voltage or Current Input Signal Converter

TT236: Current or millivolt input two wire transmitter  – Isolates and converts a DC current (+/-20mA) or low voltage (+/-500mV) input to a proportional 4-20mA control signal; 12-32V DC Loop/local power

TT336: Current or millivolt input, DC power transmitter – Multi range +/-20mA or +/-500mV input; Universal Current & Voltage Output are both supported on a single model. Optional DIN rail bus can deliver primary or redundant power to multiple units without wiring.

DT236: Current or millivolt input two wire dual transmitter – dual channel, two wire transmitter that isolates and converts DC current or low voltage inputs to proportional 4-20mA control signals.  Power received from the output loop current or a DC supply when using three wire connection.

DT336: Current or voltage input four wire transmitter – dual channel, four wire transmitter that isolates and converts DC current or low voltage inputs to proportional control signals.  Each channel supports DC current or voltage output.

DT237:  Dual Independent I/O Channels that isolates and converts medium level DC voltage inputs to 4-20mA control signal. Power received from output loop current or DC supply when using three wire connections.

DT238:  Two Wire Dual Transmitter, that isolates and converts high level DC voltage from 0 to +/-150V Inputs to a proportional 4-20mA control signal.

VPM3000: IP65 Digital Panel Meter with a bright display.  It takes in 4-20mA, +/-10V thermocouples or RTD Input and has 4-20mA, ModBus Serial or Dual Alarm Relay Output Options.  Ideal for temperature or process applications.

611T/612T: Single or Dual Channel, DC Voltage / Current Input, DC Powered Transmitters – +/-100V DC, 0 to 100mA DC, 0 to 20A AC (with optional sensor) input; 0 to 20mA, 0 to 10V DC Output, Universal DC I/O transmitters with auto configuration and self-ranging capabilities.

651T/652T:  Single/dual channel DC powered isolators receives 4-20mA process current inputs and provides isolated 4-20mA output signals.  Each channel operates independently and isolated from other channels.

654T: Two channel transmitter with push button calibration.  Allows +/-625mV or 0-10V DC Input and provides 4-20mA DC Output with 12-50V DC Power from output loop.

811T: Voltage / Current Input Intelligent Transmitter – +/-100V or 0 to 22mA DC Input ranges (AC current with optional sensor); 0 to 20mA DC, 0 to 10V DC output; mechanical relay alarm (25V@5A); 10-36V DC power; software configured; performs maths functions and has optional limit alarm.

DT337: 4 Wire Dual Transmitter that isolates and converts process level DC voltage inputs to proportional control signals.  Each channel supports DC Current or Voltage Output.  Inputs consist of +/-1V, +/-10V Inputs and 0-20mA and or +/-10V Outputs.

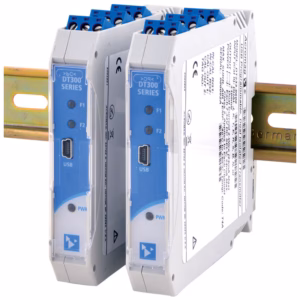

DT338: 4 Wire Dual Transmitter that isolates and converts process level DC voltage inputs to proportional control signals.  Each channel supports DC Current or Voltage Output.  Inputs consist of +/-15V, +/-150V Inputs and 0-20mA and or +/-10V Outputs.

TT237:  2 Wire transmitters that isolates and converts a process level DC voltage input to a proportional 4-20mA control signal.  A single unit supports multiple input ranges such as +/-1V, +/-5V or +/-10V for extra flexibility.  Whilst power is received from the output loop current or a local DC supply when using a three wire connection.

TT238: 2 Wire transmitters that isolates and converts a high level DC voltage input to a proportional 4-20mA control signal.  A single unit supports multiple input ranges such as +/-15V, +/-75V or +/-150V for extra flexibility.  Whilst power is received from the output loop current or a local DC supply when using a three wire connection

TT337: 4 Wire transmitters that isolates and converts a process level DC voltage input to a proportional 4-20mA control signal.  A single unit supports multiple input ranges such as +/-1V, +/-5V or +/-10V for extra flexibility and provides Universal current/voltage output.

TT338: 4 Wire transmitters that isolates and converts a high level DC voltage input to a proportional control signal.  DC Current and Voltage Output are supported in a single model.  Plus, optional DIN rail bus can deliver primary or redundant power to multiple units without wiring.

250T-AC; 350T-AC; 450T-AC: Loop, DC or AC Power Transmitter Model –  AC Voltage or AC Current Input; DC Voltage or DC Current Output with Transmitter Loop DC or AC Power

For more information on the DC Voltage or Current Input Signal Converter, contact us.
