ARINC 429 what is it and where is it used?

ARINC 429

ARINC 429 is the standard used by Commercial Aircraft for the transfer of data on their avionics bus systems.  Originally, this protocol was referred to as ARINC 419 in the early 80’s.  However, it was revised and refined to ARINC 429 – to as we know it today.   The Standard provides the data protocol to support the avionics local area network.

About ARINC 429

Firstly, ARINC 429 is a self-synchronising two-wire data bus with a Tx (Transmitter) and Rx (Receiver) on separate ports.  It is self-clocking at the receiver end.  Therefore, it does not need to transmit clocking data. It has twisted pairs of wires which carry balanced differential signalling.

Secondly, it sends messages that consists of data words.  No longer than 32 bits in length. Transmits at 12.5 or 100 kbit per second.

Thirdly, it must meet environmental requirements RTCA DO-160.  Especially, minimising electromagnetic interference with on-board radios and other equipment.  Achieved by using the 78 ohm twisted cables.  However, it can also depend on the commercial aircraft’s method of set up and decoding of the bus system.

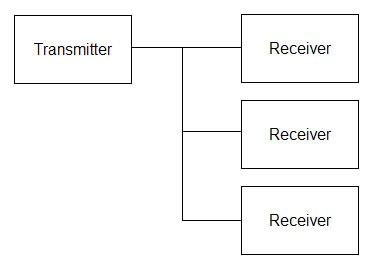

In its simplest form, an ARINC 429 network consists of a single transmitter (source) connected to a single receiver (sink). Up to 20 receivers can be connected to a single transmitter. ARINC 429 systems can include many of these connections to share data between the elements of the avionics system.

Simple form of ARINC Diagram

ARINC 429 Labelling

The Mark 33 Digital Information Transfer System is a standard used by Airlines (also known as ARINC 429).  This specification establishes the 429 bus communications for word structures, electrical characteristics and other items.

Commercial Aircraft consist of various systems that work together.  Such as radios, flight management computers, radars etc.  Therefore, as part of the ARINC 429 specification, guidelines are set for the labelling of different equipment types.  Each type of equipment, parameters are defined and labels are created that are common across all manufacturers and models.

A protocol analyzer is used for this bus system.  It collects, analyses, decodes and stores signals.  It assists Engineers when there are issues or further development work is being done.  As the hardware signals generally help find the problems.

Alta Data are specialists in ARINC 429 and MIL-STD-1553 Data Bus Analysers.  They also offer real time Ethernet Converters.  With powerful software that quickly and reliably integrates a network to your application.

To learn about 1553, click here.

The Advantages of Alta Data ARINC products:

Alta Data is a US based specialist Avionics Interface manufacturer.

Firstly, they offer a wide range of COTS ARINC Interface Cards or Boards and Real-Time appliances.  These items have between 4 to 48 shared and dedicated, independent RX/TX Channels. The TX Scheduling on these boards is highly accurate and they offer 3 simultaneous RX options per channel.  As well as IRIG/PPS External Clock controls and signal capture and generator standard.

Secondly, AltaCore Design is a portable FPGA that reduces parts obsolescence risk.  Where as AltaAPI software provides simplified layered, modular and portable integration.  Alta products offer the most advanced error detection and injection available on the market.  Plus, a 5 year warranty.

ARINC 429 Data Bus Analysers by Alta Data

Real-Time Ethernet & NLine (In-Line) Converters

ARINC 429 USB NLINE-UA429ARINC 429 Converter NLINE-EA429
NLINE-UA429
  • USB 3.1 Superspeed Interface
  • Rugged Cable In-Line Package
  • 1-8 ARINC Channels
  • 4 Channels RX or TX (Shared)
  • 4 RX Only Channels
NLINE-EA429
  • Real-time Ethernet Converter
  • Rugged Cable In-Line Package
  • 10/100/1000 Ethernet
  • 1-8 ARINC Channels
  • 4 Channels RX or TX (Shared)
  • 4 RX Only Channels
ENET-MA4-1553-&-ARINC-Images
ENET-MA4
  • Rugged Lab 1553 & ARINC Ethernet Real Time Converter
  • 1-2 Independent
  • Dual Redundant (A/B)
  • MIL STD 1553 Channels
  • Optional 8 ARINC Channels
  • Lab or Rugged MIL-810G/461 F
ENETX-MA4
  • Rugged Lab 1553 and ARINC Real-Time Ethernet Converter
  • MIL-704 Avionics Power Input
  • 1-2 Independent
  • Dual Redundant (A/B)
  • MIL STD 1553 Channels
  • Optional 8 ARINC Channels
  • Rugged MIL-810G/461/704 DO-160 Sec 22
ARINC 429 to Ethernet Converter eNET-A429ARINC 429 Ethernet Converter eNET-A429P
ENET-A429
  • ARINC-429 Real-Time Ethernet Converter
  • 10/100/1000 Ethernet Real Time Converter for 4-8 ARINC Channels



ENET-A429P
  • ARINC-429 Real-Time Ethernet Converter with Parametrics Signal Testing
  • Ethernet to 8 ARINC with Parametrics
  • 3 TX Variable Voltage
  • 1 RX/TX Shared
  • 4 RX

USB and Thunderbolt ARINC Appliances

ARINC 429 USB NLINE-UA429Avionics appliance
NLINE-UA429
  • USB 3.1 Superspeed Interface
  • Rugged Cable In-Line Package
  • 1-8 ARINC Channels
  • 4 Channels RX or TX (Shared)
  • 4 RX Only Channels
1553 and ARINC Thunderbolt™3
  • Thunderbolt 3 interface
  • 1-2 Dual redundant, independent MIL-STD-1553 Busses (channels)
  • And/or ARINC-429 Channels
USB 3.0 SuperSpeed 1553 & ARINC Image
USB 3.0 SuperSpeed 1553 & ARINC
  • 1-2 Dual Redundant, Independent 1553 Busses
  • Variable Voltage optional
  • And/or 8 ARINC Channels
  • 4 RX/TX and 4 RX


PCI Express ARINC Interface Card

ARINC 429ARINC PCI Express Interface Card PCIE1L-A429
PCIE4L-A429
  • 4-30 ARINC Channels
  • Up to 16 shared RX/TX  & 14 RX Channels
PCIE1L-A429
  • 4-8 ARINC Channels
  • Up to 4 Shared RX/TX & 4 RX
  • Lower Profile
  • Single Lane PCIe

PCI ARINC Interface Card

ARINC 429 Card
PCI-A429
  • 4-30 ARINC Channels
  • Up to 16 shared RX/TX  & 14 RX Channels
  • Half Size PCI


XMC ARINC Interface Card

ARINC PMC Card XMC-MA4 ImageARINC-429/717 XMC Interface XMC-A429
XMC-MA4
  • 1-5 Dual Redundant (A/B), Independent MIL-STD-1553 Channels
  • Optional 8 ARINC Channels



XMC-A429
  • 4-30 ARINC Channels A429/575
  • Up to 4 ARINC-717
  • Commercial / Rugged / Conduction Cooled

PMC ARINC Interface Card

ARINC-429/717 PMC Interface PMC-A429ARINC-429/717 PMC Interface PMC-A429
High Density ARINC-A429 PMC Card
  • 16, 32 or 48 Channels
  • Shared and selectable RX and TX  ARINC-429 Channels
PMC-A429
  • 4-30 ARINC Channels
  • Up to 16 Shared RX/TX
  • Up to 14 RX Channels

Mini PCI Express ARINC Interface Card

ARINC Avionics Interface Card MPCIE-A429
MPCIE-A429
  • 6 Channels of ARINC 419/429/575/717
  • 4 RX/TX and 2 RX only





PCIE104 ARINC Interface Card

Multi Protocol Interface Cards
PC104E-MA4
  • 1-2 Dual Redundant (A/B), Independent MIL-STD-1553 Channels
  • Optional 8 ARINC Channels





CompactPCI/PXI 3U/6U ARINC Interface Card

ARINC PMC Interface Card CPCIC-MA4 image for metromaticsCPCIC-MA4 3U/6U PXI Interface Card Image
CPCIC3/6-A429-PXI
  • 4-30 ARINC Channels
  • Up to 16 Shared RX/TX
  • Up to 14 RX Channels
  • PMC on 3U or 6U cPCI Carrier
  • PXI Compatible
CPCIC-MA4 3U/6U PXI
  • 1-5 Dual Redundant (A/B), Independent MIL-STD-1553 Channels
  • Optional 8 ARINC Channels
  • 4 Shared RX/TX; 4 RX
  • PMC on 3U/6U Carrier
  • PXI Compatible



CPCIE & PXI Express ARINC Interface Card

PXI Express interface modules Image
PXIe 1553, ARINC and WMUX
  • Uses Alta’s PMC Interfaces on a 3U Carrier





PC/104 Plus ARINC Interface Card

ARINC PC104P-A429 Avionics CardPC104P-MA4 Interface Card Image
PC104P-A429
  • 24 ARINC Channels
  • Up to 12 Shared RX/TX
  • Up to 12 RX Channels



PC104P-MA4
  • 1-2 Dual Redundant (A/B), Independent MIL-STD-1553 Channels
  • 8 ARINC Channels



PCCARD / PCMCIA / ExpressCard ARINC Interface Card

PCCD & ECD54 1553 Interface Card Image
PCCD-A429 and ECD54-A429
  • 4-8 Channels
  • Up to 4 Shared RX/TX
  • Up to 4 RX Channels
  • PCMCIA/PCCARD and Express Card 54mm





For more information on ARINC 429 Avionics Bus Analysers, contact us.
